Features

Choose a template and enter the measurements; the pieces and stitch holes are calculated automatically. Joined edges have the same number of holes; the pattern is printed at true scale or saved as SVG and DXF for laser cutting.

Key features

Templates: Card holder (1–4 pockets), bifold wallet, long wallet, passport cover, key fob, pen case, watch strap and belt.
Patterns from measurements: Object size (card, banknote, passport, pen, wrist, waist), number and step of pockets, leather thickness, stitch margin, corner radius, chisel spacing (2.7–4 mm) and hole diameter.
Matching stitch holes: Holes start at the corners and are rounded to an even spacing; pieces stitched on top take their holes from the piece below, so joined edges have the same, displayed number of holes.
Thread length: An estimate of thread length for saddle stitching (stitch length × 4 + 30 cm).
True-scale printing: 100% scale with 10 mm and 1 inch test squares. Tiling onto A4 / Letter pages with overlap, registration marks, page names and a page map.
Laser and cutting machines: Vector PDF, SVG (cut lines red, fold lines blue) and DXF; at true size, in millimetres.
Editing: Pieces are dragged and resized with handles or by measurement; notches, slots, snaps, rivets, hole marks, fold lines, grain direction, quantity and mirrored cutting.
Samples: A card holder, a bifold wallet, a key fob and a passport cover come with the first launch; they return with "Add samples again".

Devices and browsers

When printing, 100% scale must be selected; the test squares are checked with a ruler.

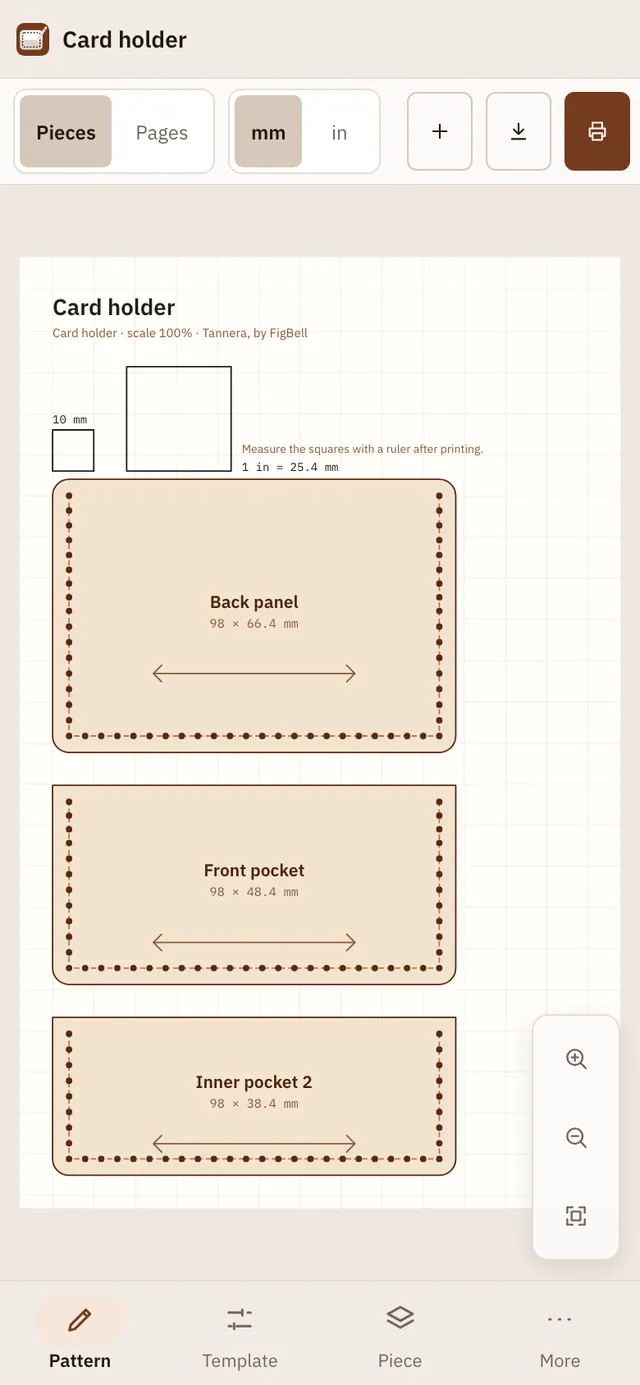

On phones the pattern fills the screen; the piece list and inspector open in a bottom sheet.
Saving a file in place is available in Chrome, Edge and Opera; in other browsers the saved file is downloaded.
